  SHAPE3D LITE

  DOWNLOAD NOW
  With Shape3d Lite you can create your own surfboard, sailboard, paddle, kite..., and send the file to the nearest factory to have it cut exactly like you designed.

NEW: Shape3d X Lite now has the 3D View!!!


Shape3d LITE is FREE and it has most of the deisgn features:

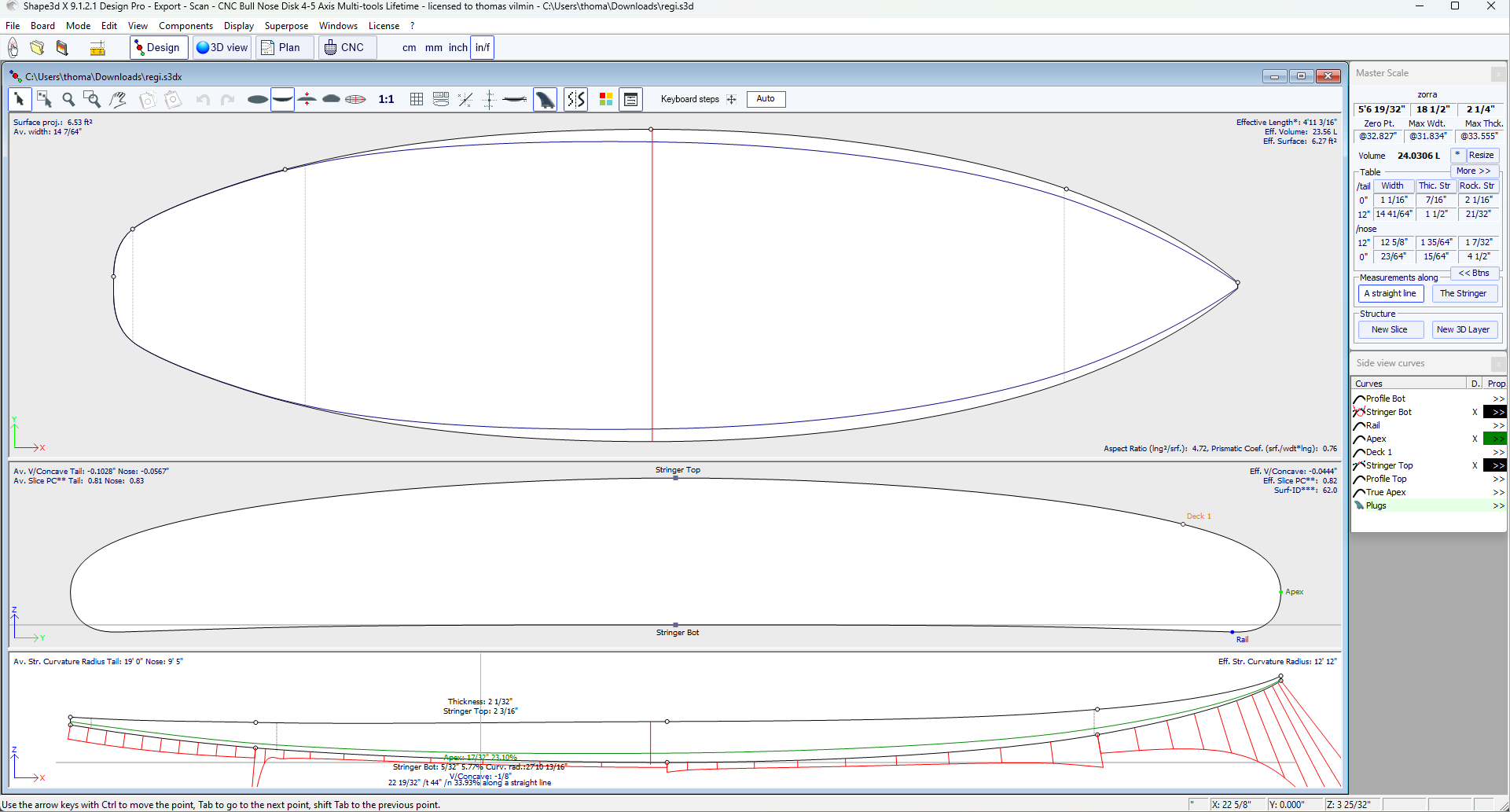

  • Design of outline, stringer and as many slices as you want
  • Display curvature, curvature radius and acceleration curvature radius (SurfCAD)
  • Guidelines and measurement bars at any position
  • Waterline with immersed volume
  • Ghost board (boards comparison of outline, profile, and slices at any position)
  • Fins positioning
  • Full scale printing
  • File protection.
  • Save in the Shape3d X format (.s3dx) and Shape3d 8 format (.s3d).
  • Open .srf, .kms and .brd (even encrypted) files.

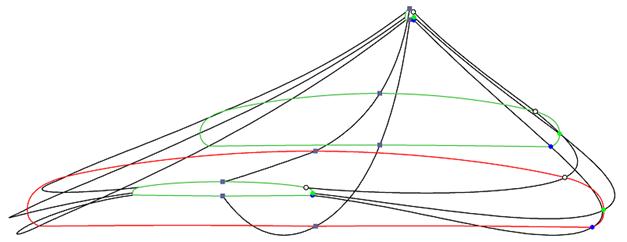

  • 3D View with Solid view, Stringer, and Artwork Mapping!!!


Technical requirements

  • PC: Windows 8, Windows 7, Vista, XP, 98.& NT, NT 2000 with DirectX
  • Mac: OSX 10.6.0 and later (portage by fr.portmyapps.com)
  • Display XGA at least (better results with a 1600x1200 resolution)
