The 3D Layers

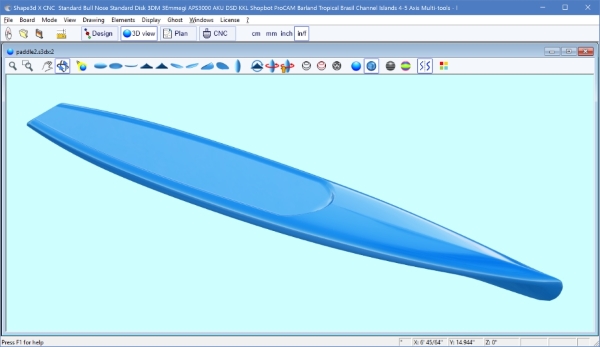

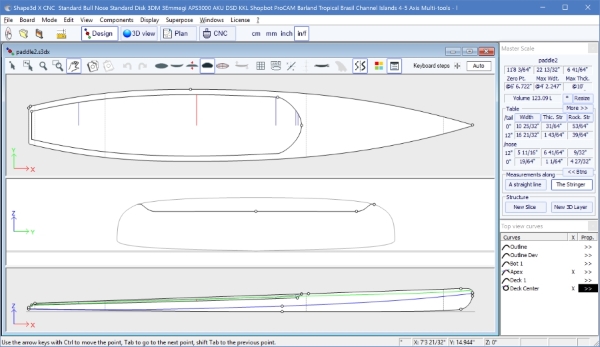

The second most important new feature of Shape3d X is the possibility to add or subtract shapes to a board. These shapes are called 3D Layers.

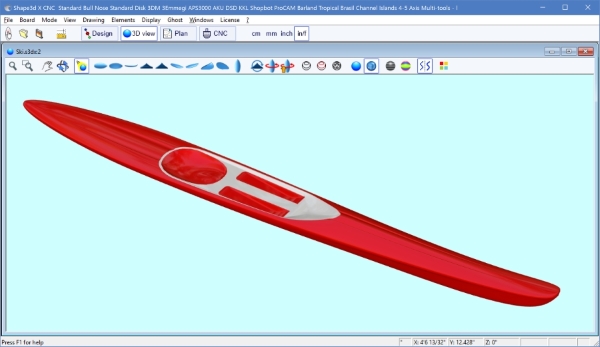

The 3D layers can be added to the deck or the bottom of the board.
The 3D layers can be saved in a separated file, and then loaded in another board file.
Several 3D layers can be added one on the other.

The Multi-Curves Edition

One of the most important new feature of Shape3d X is that each curve can be Edited or not in the Top and/or the Side view.

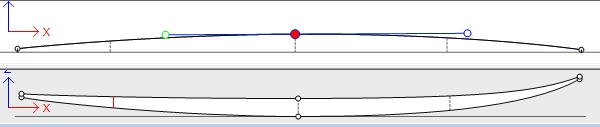

For example, in the Side view, one can choose to edit the Bottom and Deck Stringer line, but also the Rail line at the same time. It gives a complete control of both stringer and rail and let the other curves be computed by Shape3d.
Editing Rail line and Stringer line in the side view allows controlling exactly the depth of the concave or V of your board.
You can also edit the Apex line in the Side view, which can be very useful on some shapes like paddle boards.

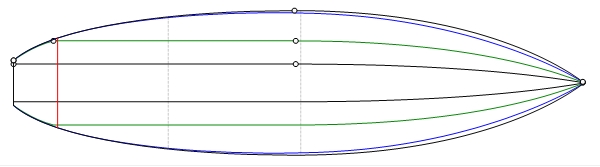

You can also edit several of the bottom curves on the Top view to control the shape of the channels of a board.
