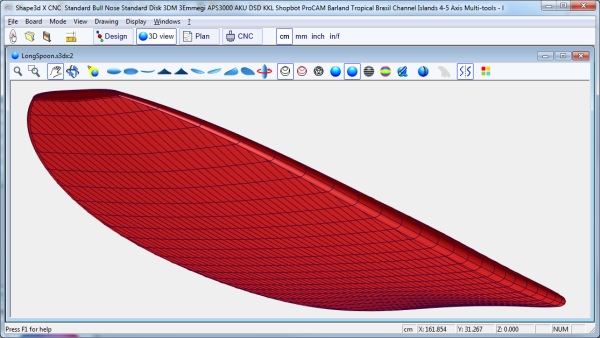

• The boards can be displayed as wire or solid.
• One can add a stringer of defined color and width.
• One can add the definition slices and the fins plugs.

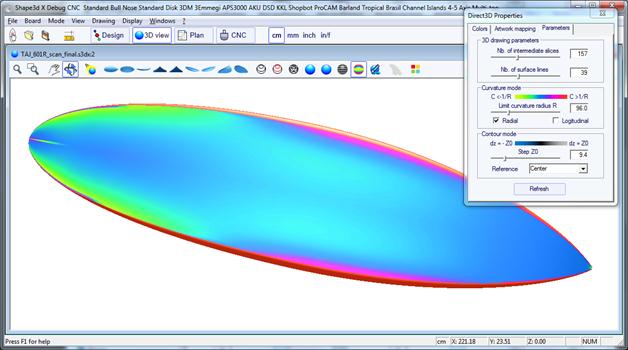

• It also has a Curvature mode that shows the curvature variations with color changes. It is a very usefull tool to see the evolution of a concave or V on the bottom of a board.

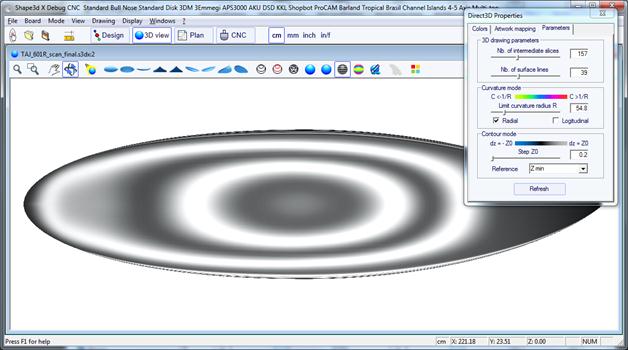

• Now there is the Level lines mode the shows stripes with fixed height steps. This other tool is very usefull to see the evolution of the depth of a concave or a V.

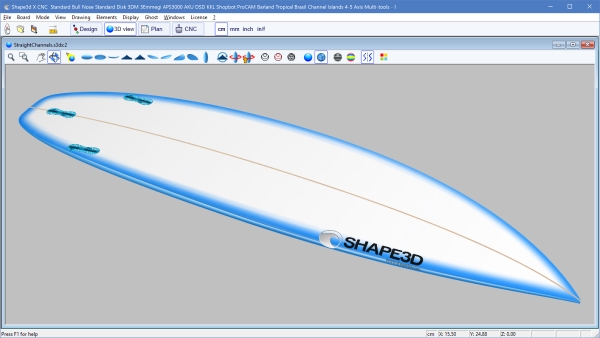

• Finally, you can use the artwork mapping to see how your board will look like in real life !
• The 3D Design license also allows the export of the outline, profile, and slices one by one in the Text, DXF, IGES and WRML formats.
